● 低噪音:采用螺旋齒輪設計，實現了減速機的順暢、安靜運轉。
● 高精度背隙可達3弧分以內，定位精確。
● 高剛性、高扭矩輸出軸采用大尺寸，大跨距式雙支撐軸承設計，大大提高了減速機剛性和扭矩。
● 高效率:單段可達95%以上，雙段可達92%以上。
● 免維護:油脂磨耗低，可終身潤滑。
● 密封效果好:潤滑油脂具有高粘度、不易分離的特性，并采用IP65防護等級，確保無潤滑油脂泄漏。
● 自由安裝:可任意安裝減速機。

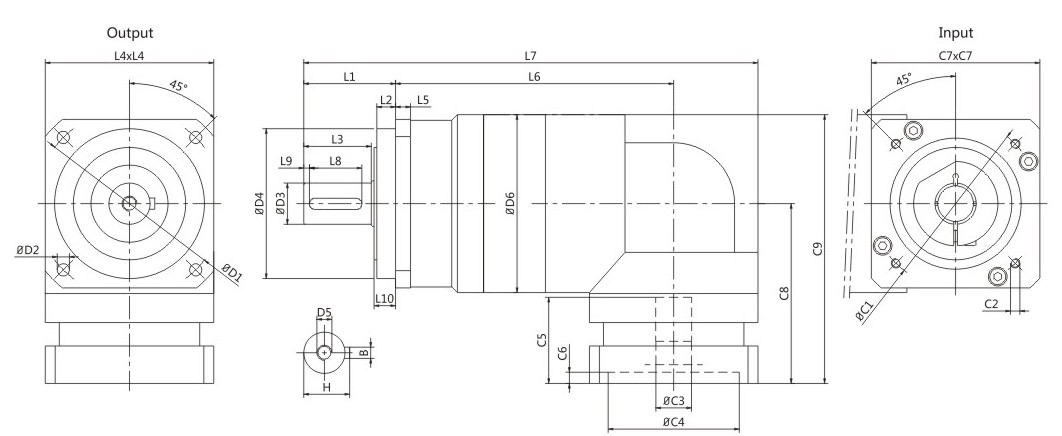

● 適用性廣;適用于任意型式伺服電機。TVBR060-L1
| TVBR060-L1 | |||||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | D6 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※C1 | ※C2 | ※C3 | ※C4 | ※C5 | ※C6 | ※C7 | C8 | C9 | B | H |
| Type Ⅰ | 70 | 5.5 | 16 | 50 | M5 | 60 | 37 | 7 | 28.5 | 60 | 8 | 91 | 158 | 20 | 3 | 7.5 | 70 | M4 | 14 | 50 | 32 | 6 | 60 | 75 | 105 | 5 | 18 |
| Type Ⅱ | 70 | 5.5 | 16 | 50 | M5 | 60 | 37 | 7 | 28.5 | 60 | 8 | 91 | 158 | 20 | 3 | 7.5 | 90 | M5 | 19 | 70 | 43 | 6 | 80 | 87 | 117 | 5 | 18 |

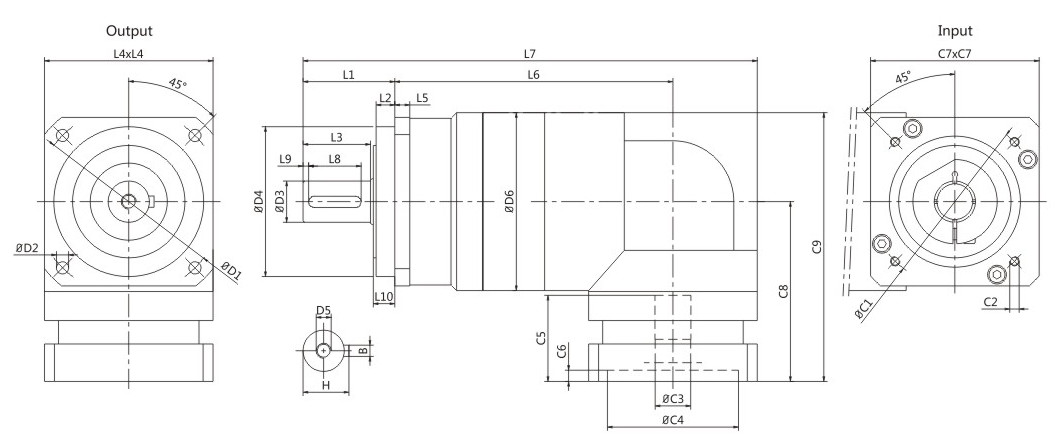

TVBR060-L2
| TVBR060-L2 | |||||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | D6 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | C8 | C9 | B | H |
| Type Ⅰ | 70 | 5.5 | 16 | 50 | M5 | 60 | 37 | 7 | 28.5 | 60 | 8 | 111 | 178 | 20 | 3 | 7.5 | 70 | M4 | 14 | 50 | 32 | 6 | 60 | 75 | 105 | 5 | 18 |
| Type Ⅱ | 70 | 5.5 | 16 | 50 | M5 | 60 | 37 | 7 | 28.5 | 60 | 8 | 111 | 178 | 20 | 3 | 7.5 | 70 | M4 | 11 | 50 | 32 | 6 | 60 | 75 | 105 | 5 | 18 |
| TVBR060 | ||||||||||||||||
| 速比 | Ratio | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 | |
| 額定輸出扭矩 T2N | Nominal Output Tourque T2N | Nm | 55 | 50 | 60 | 50 | 40 | 55 | 50 | 60 | 55 | 50 | 50 | 60 | 50 | 40 |
| 急停扭矩 T2NOT | Emergency Stop Torque T2NOT | Nm | 2.5倍額定輸出扭矩 2.5times of Nominal Output Torque | |||||||||||||
| 額定輸入轉速n1N | Nominal Input Speed n1N | rpm | 5000 | |||||||||||||
| 最大輸入轉速 n1B | Max. Input Speed n1B | rpm | 10000 | |||||||||||||
| 扭轉剛性 | Torsional Rigidity | Nm/arcmin | 7 | |||||||||||||
| 容許徑向力 F2rb | Max. Radial Load F2rb | N | 1530 | |||||||||||||
| 容許軸向力 F2ab | Max. Axial Load F2ab | N | 630 | |||||||||||||
| 只用壽命 | Service Life | hr | 20000（連續運轉壽命減半①） | |||||||||||||
| 噪音值 | Noise | dB | ≤70（輸入轉速=3000rpm、空載、距離1M②） | |||||||||||||
| 使用溫度 | Operating Temp | ℃ | -10 ~ +90 | |||||||||||||
| 防護等級 | Degree of Reducer Protection | IP65 | ||||||||||||||
| 潤滑 | Lubrication | 合成潤滑油脂（終身潤滑）Synthrtic lubrication oils | ||||||||||||||
| 轉動慣量 J1 | Mass moments of Inertia J1 | Kg·cm2 | 0.16 | 0.14 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 |
| 標準背隙P2 | Standard Backlash P2 | arcmin | ≤8 | ≤10 | ||||||||||||
| 效率 η | Efficiency η | % | ≥93% | ≥90% | ||||||||||||
① Half-life under continuous operation mode.
② Raducer under no-load mode, input speed is 3000, the vale which Noise Measurement machine get at one mater away postion.

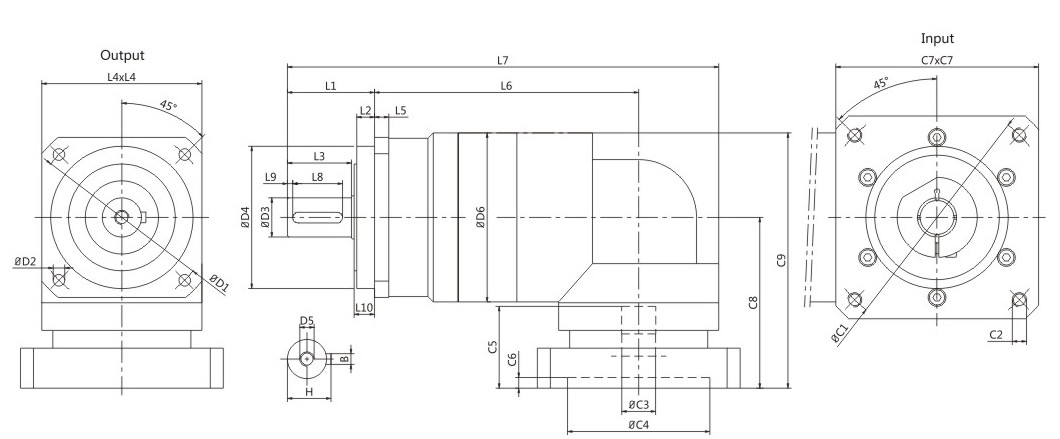

TVBR090-L1
| TVBR090-L1 | |||||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | D6 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※C1 | ※C2 | ※C3 | ※C4 | ※C5 | ※C6 | ※C7 | C8 | C9 | B | H |
| Type Ⅰ | 100 | 6.5 | 22 | 80 | M8 | 95 | 47.5 | 8.5 | 36 | 90 | 8 | 117 | 212 | 30 | 3 | 9 | 90 | M5 | 19 | 70 | 47.5 | 6 | 90 | 96 | 143.5 | 6 | 24.5 |
| Type Ⅱ | 100 | 6.5 | 22 | 80 | M8 | 95 | 47.5 | 8.5 | 36 | 90 | 8 | 117 | 212 | 30 | 3 | 9 | 145 | M8 | 19 | 110 | 61 | 10 | 130 | 116 | 163.5 | 6 | 24.5 |
| Type Ⅲ | 100 | 6.5 | 22 | 80 | M8 | 95 | 47.5 | 8.5 | 36 | 90 | 8 | 117 | 212 | 30 | 3 | 9 | 145 | M8 | 22 | 110 | 61 | 10 | 130 | 116 | 143.5 | 6 | 24.5 |
| Type Ⅳ | 100 | 6.5 | 22 | 80 | M8 | 95 | 47.5 | 8.5 | 36 | 90 | 8 | 117 | 212 | 30 | 3 | 9 | 145 | M8 | 24 | 110 | 61 | 10 | 130 | 116 | 143.5 | 6 | 24.5 |
TVBR090-L2
| TVBR090-L2 | |||||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | D6 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | C8 | C9 | B | H |
| Type Ⅰ | 100 | 6.5 | 22 | 80 | M8 | 95 | 47.5 | 8.5 | 36 | 90 | 8 | 150 | 245 | 30 | 3 | 9 | 90 | M5 | 19 | 70 | 47.5 | 6 | 90 | 96 | 143.5 | 6 | 24.5 |
| Type Ⅱ | 100 | 6.5 | 22 | 80 | M8 | 95 | 47.5 | 8.5 | 36 | 90 | 8 | 150 | 245 | 30 | 3 | 9 | 70 | M4 | 14 | 50 | 32 | 6 | 60 | 90 | 137.5 | 6 | 24.5 |
| TVBR090 | ||||||||||||||||
| 速比 | Ratio | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 | |
| 額定輸出扭矩 T2N | Nominal Output Tourque T2N | Nm | 130 | 140 | 160 | 140 | 100 | 130 | 140 | 160 | 150 | 140 | 140 | 160 | 140 | 100 |
| 急停扭矩 T2NOT | Emergency Stop Torque T2NOT | Nm | 2.5倍額定輸出扭矩 2.5times of Nominal Output Torque | |||||||||||||
| 額定輸入轉速n1N | Nominal Input Speed n1N | rpm | 4000 | |||||||||||||
| 最大輸入轉速 n1B | Max. Input Speed n1B | rpm | 8000 | |||||||||||||
| 扭轉剛性 | Torsional Rigidity | Nm/arcmin | 14 | |||||||||||||
| 容許徑向力 F2rb | Max. Radial Load F2rb | N | 3250 | |||||||||||||
| 容許軸向力 F2ab | Max. Axial Load F2ab | N | 1300 | |||||||||||||
| 只用壽命 | Service Life | hr | 20000（連續運轉壽命減半①） | |||||||||||||
| 噪音值 | Noise | dB | ≤70（輸入轉速=3000rpm、空載、距離1M②） | |||||||||||||
| 使用溫度 | Operating Temp | ℃ | -10 ~ +90 | |||||||||||||
| 防護等級 | Degree of Reducer Protection | IP65 | ||||||||||||||
| 潤滑 | Lubrication | 合成潤滑油脂（終身潤滑）Synthrtic lubrication oils | ||||||||||||||
| 轉動慣量 J1 | Mass moments of Inertia J1 | Kg·cm2 | 0.61 | 0.48 | 0.47 | 0.45 | 0.44 | 0.47 | 0.47 | 0.47 | 0.44 | 0.45 | 0.44 | 0.44 | 0.13 | 0.13 |
| 標準背隙P2 | Standard Backlash P2 | arcmin | ≤8 | ≤10 | ||||||||||||
| 效率 η | Efficiency η | % | ≥93% | ≥90% | ||||||||||||
① Half-life under continuous operation mode.
② Raducer under no-load mode, input speed is 3000, the vale which Noise Measurement machine get at one mater away postion.
TVBR120-L1
| TVBR120-L1 | |||||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | D6 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※C1 | ※C2 | ※C3 | ※C4 | ※C5 | ※C6 | ※C7 | C8 | C9 | B | H |
| Type Ⅰ | 130 | 9 | 32 | 110 | M12 | 125 | 65 | 12 | 49 | 115 | 50 | 135.5 | 262 | 40 | 5 | 14 | 145 | M8 | 22 | 110 | 62.5 | 8 | 130 | 134 | 196.5 | 10 | 35 |
| Type Ⅱ | 130 | 9 | 32 | 110 | M12 | 125 | 65 | 12 | 49 | 115 | 50 | 135.5 | 262 | 40 | 5 | 14 | 145 | M8 | 24 | 110 | 62.5 | 8 | 130 | 134 | 196.5 | 10 | 35 |
TVBR120-L2
| TVBR120-L2 | |||||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | D6 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | C8 | C9 | B | H |
| Type Ⅰ | 130 | 9 | 32 | 110 | M12 | 125 | 65 | 12 | 49 | 115 | 50 | 172.5 | 300 | 40 | 5 | 14 | 145 | M8 | 22 | 110 | 62.5 | 8 | 130 | 134 | 196.5 | 10 | 35 |
| Type Ⅱ | 130 | 9 | 32 | 110 | M12 | 125 | 65 | 12 | 49 | 115 | 50 | 172.5 | 300 | 40 | 5 | 14 | 145 | M8 | 24 | 110 | 62.5 | 8 | 130 | 134 | 196.5 | 10 | 35 |
| Type Ⅲ | 130 | 9 | 32 | 110 | M12 | 125 | 65 | 12 | 49 | 115 | 50 | 172.5 | 300 | 40 | 5 | 14 | 90 | M5 | 19 | 70 | 47.5 | 6 | 90 | 124 | 186.5 | 10 | 35 |
| TVBR120 | ||||||||||||||||
| 速比 | Ratio | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 | |
| 額定輸出扭矩 T2N | Nominal Output Tourque T2N | Nm | 208 | 290 | 330 | 300 | 230 | 208 | 290 | 330 | 310 | 300 | 290 | 330 | 300 | 230 |
| 急停扭矩 T2NOT | Emergency Stop Torque T2NOT | Nm | 2.5倍額定輸出扭矩 2.5times of Nominal Output Torque | |||||||||||||
| 額定輸入轉速n1N | Nominal Input Speed n1N | rpm | 4000 | |||||||||||||
| 最大輸入轉速 n1B | Max. Input Speed n1B | rpm | 8000 | |||||||||||||
| 扭轉剛性 | Torsional Rigidity | Nm/arcmin | 25 | |||||||||||||
| 容許徑向力 F2rb | Max. Radial Load F2rb | N | 6700 | |||||||||||||
| 容許軸向力 F2ab | Max. Axial Load F2ab | N | 3000 | |||||||||||||
| 只用壽命 | Service Life | hr | 20000（連續運轉壽命減半①） | |||||||||||||
| 噪音值 | Noise | dB | ≤72（輸入轉速=3000rpm、空載、距離1M②） | |||||||||||||
| 使用溫度 | Operating Temp | ℃ | -10 ~ +90 | |||||||||||||
| 防護等級 | Degree of Reducer Protection | IP65 | ||||||||||||||
| 潤滑 | Lubrication | 合成潤滑油脂（終身潤滑）Synthrtic lubrication oils | ||||||||||||||
| 轉動慣量 J1 | Mass moments of Inertia J1 | Kg·cm2 | 3.25 | 2.74 | 2.71 | 2.62 | 2.57 | 2.71 | 2.71 | 2.71 | 2.57 | 2.62 | 2.57 | 2.57 | 0.44 | 0.44 |
| 標準背隙P2 | Standard Backlash P2 | arcmin | ≤8 | ≤10 | ||||||||||||
| 效率 η | Efficiency η | % | ≥93% | ≥90% | ||||||||||||
① Half-life under continuous operation mode.
② Raducer under no-load mode, input speed is 3000, the vale which Noise Measurement machine get at one mater away postion.
TVBR140-L1
| TVBR140-L1 | |||||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | D6 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※C1 | ※C2 | ※C3 | ※C4 | ※C5 | ※C6 | ※C7 | C8 | C9 | B | H |
| Type Ⅰ | 165 | 11 | 40 | 130 | M16 | 150 | 97 | 12 | 82 | 140 | 12 | 185.5 | 357.5 | 65 | 5 | 13.5 | 200 | M12 | 35 | 114.3 | 81.5 | 8 | 180 | 167 | 242 | 12 | 43 |
TVBR140-L2
| TVBR140-L2 | |||||||||||||||||||||||||||
| Dimension | D1 | D2 | D3 | D4 | D5 | D6 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | ※1 | ※2 | ※3 | ※4 | ※5 | ※6 | ※7 | C8 | C9 | B | H |
| Type Ⅰ | 165 | 11 | 40 | 130 | M16 | 150 | 97 | 12 | 82 | 140 | 12 | 227 | 399 | 65 | 5 | 13.5 | 200 | M12 | 35 | 114.3 | 81.5 | 8 | 180 | 167 | 242 | 12 | 43 |
| Type Ⅱ | 165 | 11 | 40 | 130 | M16 | 150 | 97 | 12 | 82 | 140 | 12 | 227 | 399 | 65 | 5 | 13.5 | 145 | M8 | 24 | 110 | 74 | 8 | 130 | 157 | 232 | 12 | 43 |
| Type Ⅲ | 165 | 11 | 40 | 130 | M16 | 150 | 97 | 12 | 82 | 140 | 12 | 227 | 399 | 65 | 5 | 13.5 | 145 | M8 | 22 | 110 | 74 | 8 | 130 | 157 | 232 | 12 | 43 |
| TVBR140 | ||||||||||||||||
| 速比 | Ratio | 3 | 4 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 70 | 100 | |
| 額定輸出扭矩 T2N | Nominal Output Tourque T2N | Nm | 342 | 542 | 650 | 550 | 450 | 342 | 542 | 650 | 600 | 550 | 542 | 650 | 550 | 450 |
| 急停扭矩 T2NOT | Emergency Stop Torque T2NOT | Nm | 2.5倍額定輸出扭矩 2.5times of Nominal Output Torque | |||||||||||||
| 額定輸入轉速n1N | Nominal Input Speed n1N | rpm | 3000 | |||||||||||||
| 最大輸入轉速 n1B | Max. Input Speed n1B | rpm | 6000 | |||||||||||||
| 扭轉剛性 | Torsional Rigidity | Nm/arcmin | 50 | |||||||||||||
| 容許徑向力 F2rb | Max. Radial Load F2rb | N | 9400 | |||||||||||||
| 容許軸向力 F2ab | Max. Axial Load F2ab | N | 4700 | |||||||||||||
| 只用壽命 | Service Life | hr | 20000（連續運轉壽命減半①） | |||||||||||||
| 噪音值 | Noise | dB | ≤75（輸入轉速=3000rpm、空載、距離1M②） | |||||||||||||
| 使用溫度 | Operating Temp | ℃ | -10 ~ +90 | |||||||||||||
| 防護等級 | Degree of Reducer Protection | IP65 | ||||||||||||||
| 潤滑 | Lubrication | 合成潤滑油脂（終身潤滑）Synthrtic lubrication oils | ||||||||||||||
| 轉動慣量 J1 | Mass moments of Inertia J1 | Kg·cm2 | 9.21 | 7.54 | 7.42 | 7.14 | 7.03 | 7.42 | 7.42 | 7.42 | 7.03 | 7.14 | 7.03 | 7.03 | 2.57 | 2.57 |
| 標準背隙P2 | Standard Backlash P2 | arcmin | ≤8 | ≤10 | ||||||||||||
| 效率 η | Efficiency η | % | ≥93% | ≥90% | ||||||||||||
① Half-life under continuous operation mode.
② Raducer under no-load mode, input speed is 3000, the vale which Noise Measurement machine get at one mater away postion.
